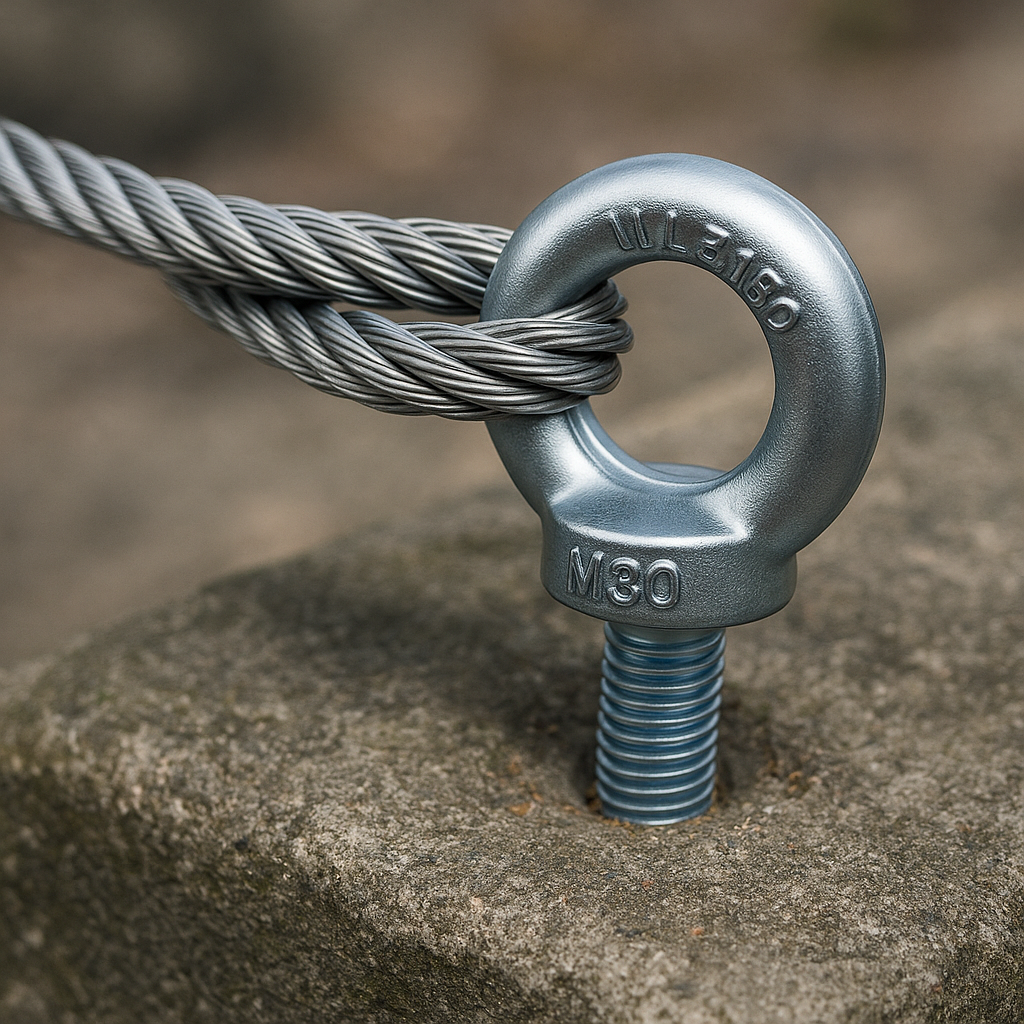

GI Eye Bolts – Galvanized Iron Lifting Points for Industrial Applications

Durable, Corrosion-Resistant Anchor Points for Safe Rigging & Material Handling

Our hot-dip galvanized iron (GI) eye bolts provide reliable lifting points for construction, marine, and general industrial use. Made from high-strength carbon steel with a thick zinc coating, these eye bolts offer superior corrosion resistance while maintaining excellent load-bearing capacity.

• Key Features & Benefits:

– Heavy-Duty GI Construction – Withstands harsh outdoor environments

– Smooth Eye Design – Prevents cable/sling abrasion

– Working Load Limits (WLL): 50kg to 5,000kg (varies by size)

– Standards Compliance: DIN 580, ISO 3266

– Thread Types: Metric (M6-M64) & Imperial (1/4″-2″)

• Available Variants:

– Standard Eye Bolt – General-purpose lifting

– Shoulder Eye Bolt – Required for angular lifts

– Lag Eye Bolt – For wood/timber applications

– Custom Lengths – OEM specifications available

• Industrial Applications:

– Construction: Scaffolding, precast concrete lifting

– Marine: Dock equipment, boat hoisting

– Warehousing: Overhead load anchoring

– Agriculture: Barn rigging, equipment handling

• Technical Specifications:

– Material: Carbon Steel (Grade 4.8/8.8)

– Finish: Hot-dip galvanized (min. 50μm coating)

– Temperature Range: -20°C to 200°C

– Angular Loading: Up to 45° (shoulder type only)

• B2B Advantages:
• Batch testing certificates available
• Custom packaging for distributors
• Competitive bulk pricing
• Technical drawings upon request

📞 Contact for Volume Discounts & Custom Orders!
