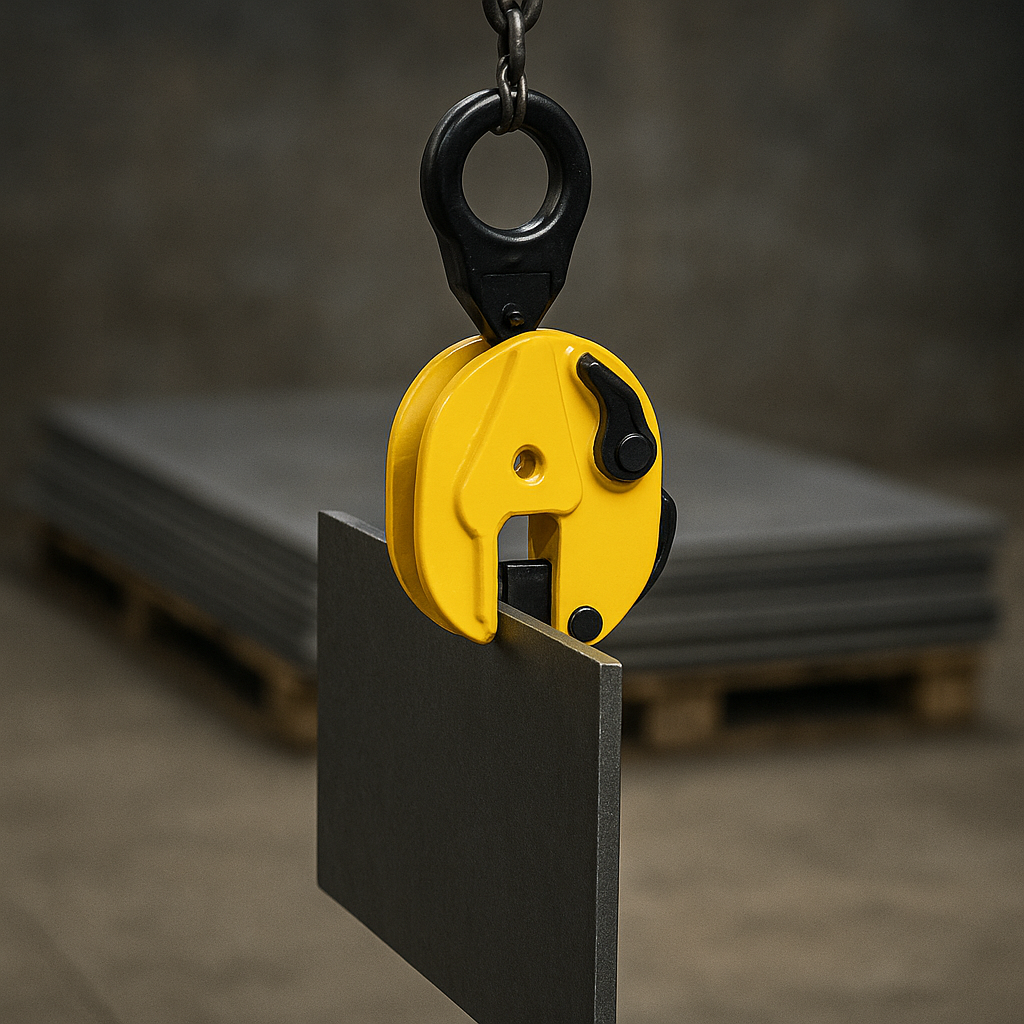

Vertical Plate Lifting Clamp (CDH Type) – 2000kg Capacity | Heavy-Duty Steel Construction

Effortlessly lift and maneuver vertical steel plates, sheets, and structural components with our industrial-grade CDH vertical plate lifting clamp. Engineered for steel fabrication, shipbuilding, and construction sites, this rugged clamp provides secure, balanced lifting of materials up to 2000kg without damaging edges.

 Key Features & Benefits:

• 2000kg Load Capacity – Ideal for thick steel plates (10-100mm)
• Vertical Lifting Design – Specifically made for upright plate handling
• Automatic Locking Mechanism – Ensures safe grip during transport
• Heavy-Duty Alloy Steel – Heat-treated for maximum durability
• Ergonomic Handle – Easy operation with minimal effort
• 360° Swivel Hook – Allows perfect positioning during crane lifts

 Technical Specifications:

| Model | CDH-2000 |

|———–|———|

| Capacity | 2000 kg |

| Plate Thickness Range | 10-100 mm |

| Jaw Opening | 120 mm max |

| Material | Heat-treated alloy steel |

| Safety Factor | 4:1 working load limit |

| Finish | Yellow zinc-plated for corrosion resistance |

| Certifications | CE, EN 13155, OSHA compliant |

 Why Choose Our CDH Vertical Plate Clamp?

• Prevents plate damage – No edge deformation during lifting
• Reduces labor costs – One-person operation
• Versatile applications – Perfect for steel mills, welding shops, and bridge construction

⚠ WARNING: For vertical lifting only – Not for horizontal use

📞 Call for volume discounts – ideal for steel service centers!
